Home » Steel Tank Gallery » Double Wall Tank Gallery

Double Wall Tank Gallery

4,000 gallon double wall UL-142 AvGas tank on Saddles. Stainless 304 construction.
4,000 gallon double wall UL-142 AvGas tank on Saddles. Stainless 304 construction.
1,000 Gallon Fireguard Tank
1,000 Gallon Fireguard Tank
BIOMASS EXTRACT TANK ul-142 stainless
2000 UL-142 Double Wall Vertical tanks for Biomass Extracting process tanks. Stainless inner, carbon outer Telegrey-1 polyurethane topcoat.
10,000 Gallon Fireguard
This custom 10k Fireguard includes and #AXI STS 6004 fuel polishing system, Total control systems 682-15 FP piston meter, and FE Petro submersible pump amongst other top-of-the-line equipment.
6300 Gallon Double Wall Generator Base Tank
6300 Gallon Double Wall Generator Base tank for a company in Las Vegas. Tank is 36" high x 92" wide x 443" long
8,000 Gallon 3-Compartment Double Wall Tank
8,000 Gallon 3-Compartment Double Wall Tank with 50' hose reels and submersible pumps. Ready for use upon arrival at customers location.
1,000 Gallon UL142 Double Wall Skid tanks fully outfitted. Tanks are 64in. Dia x 72in. Long
1,000 Gallon UL142 Double Wall Skid tanks fully outfitted. Tanks are 64in. Dia x 72in. Long
Sixteen- 1,000 Gallon UL142 Double Wall Skid Tanks ready for shipment. Tanks are 46in. Dia x 144in. Long
Sixteen- 1,000 Gallon UL142 Double Wall Skid Tanks ready for shipment. Tanks are 46in. Dia x 144in. Long
1,000 Gallon 2-Compartment Double Wall Tank. This tank was designed specifically for a customer needing gasoline and diesel stored in a one tank. The two products were divided by a double bulkhead. The Gasoline side was painted red and the diesel was painted green to distinquish the two products.
1,000 Gallon 2-Compartment Double Wall Tank. This tank was designed specifically for a customer needing gasoline and diesel stored in a one tank. The two products were divided by a double bulkhead. The Gasoline side was painted red and the diesel was painted green to distinquish the two products.
10, 000 Gallon UL142 Double Wall Tank with UL Plate Saddles. Tank was fully outfitted with ground level fill and pump platform with pump and hose reel
10, 000 Gallon UL142 Double Wall Tank with UL Plate Saddles. Tank was fully outfitted with ground level fill and pump platform with pump and hose reel
10, 000 Gallon UL142 Double Wall Tank with (3) UL Plate Saddles. Tank was fully outfitted with ground level fill and pump platform with pump and hose reel
10, 000 Gallon UL142 Double Wall Tank with (3) UL Plate Saddles. Tank was fully outfitted with ground level fill and pump platform with pump and hose reel
10, 000 Gallon UL142 Double Wall Tank
10, 000 Gallon UL142 Double Wall Tank with Non UL Bolt-On Saddles installed at customer's location.
10, 000 Gallon UL142 Double Wall Tank with Non UL Bolt-On Saddles fully outfitted.
10, 000 Gallon UL142 Double Wall Tank with Non UL Bolt-On Saddles fully outfitted.
10,000 Gallon Vertical Dished Bottom Double Wall Tank with cage ladder, top handrail and insulated with an aluminum jacket installed at the factory.
10,000 Gallon Vertical Dished Bottom Double Wall Tank with cage ladder, top handrail and insulated with an aluminum jacket installed at the factory.
10,000 Gallon UL142 Horizontal Double Wall Tank with UL Plate saddles and skid. Tank was equiped with ground level fill piping and a pump platform.
10,000 Gallon UL142 Horizontal Double Wall Tank with UL Plate saddles and skid. Tank was equiped with ground level fill piping and a pump platform.
12,000 Gallon UL142 Horizontal Double Wall Tank with a locakable pump house and built in containment pan. This tank also had a fill platform with a ladder on the opposite end.
12,000 Gallon UL142 Horizontal Double Wall Tank with a locakable pump house and built in containment pan. This tank also had a fill platform with a ladder on the opposite end.
300 Gallon UL142 All Stainless Steel Double Wall tank.
300 Gallon UL142 All Stainless Steel Double Wall tank.
500 Gallon UL142 Single Wall tanks with a special saddle design to aid customer in fastening tanks down.
500 Gallon UL142 Single Wall tanks with a special saddle design to aid customer in fastening tanks down.
No size is too big! 300 gallon and 20,000 gallon Contain-A-Tanks.
No size is too big! 300 gallon and 20,000 gallon Contain-A-Tanks.
500 Gallon Contain-A-Tanks. These tanks have their own built in containment.
500 Gallon Contain-A-Tanks. These tanks have their own built in containment.
1,000 Gallon Contain-A-Tanks painted Red.
1,000 Gallon Contain-A-Tanks painted Red.
8,000 Gallon UL142 Double Wall Tank. Customer requested the ability to secure the dispenser and fill so we designed this lockable doghouse. This doghouse doubles as a spill containment.
8,000 Gallon UL142 Double Wall Tank. Customer requested the ability to secure the dispenser and fill so we designed this lockable doghouse. This doghouse doubles as a spill containment.
8,000 Gallon doghouse tank
8,000 Gallon doghouse tank showing the pump on the top of the tank with piping to the remote meter. This picture shows how nicely the system was set up for the customer's ease of use.

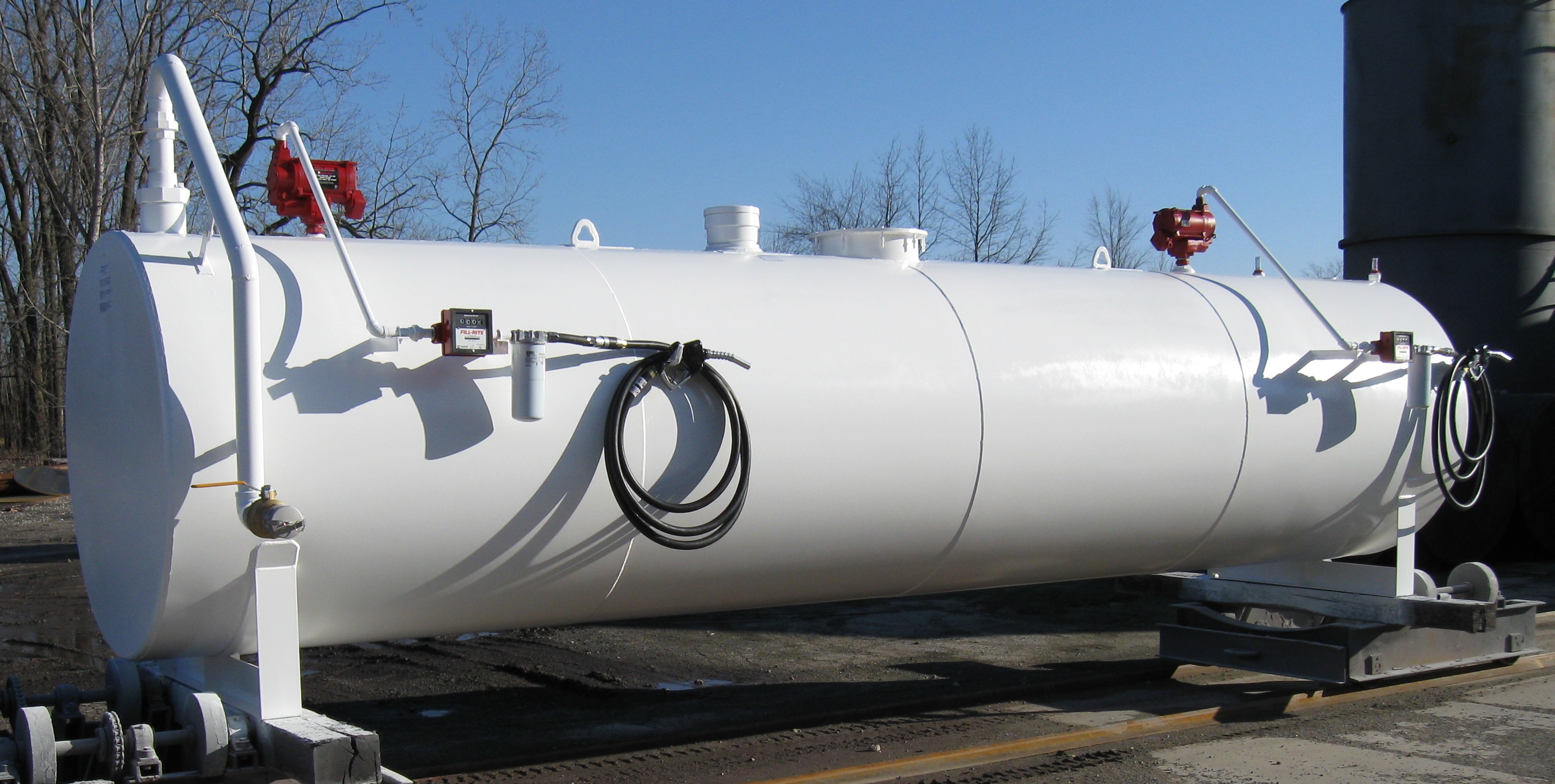

10,000 Horizontal Double Wall Tank with UL Plate Saddles set up as a 2-Dispenser system. This tank is 96in. Dia x 27' Long
10,000 Horizontal Double Wall Tank with UL Plate Saddles set up as a 2-Dispenser system. This tank is 96in. Dia x 27' Long
516 and 1000 gallon Double Wall Tanks in stock for immediate shipment.
516 and 1000 gallon Double Wall Tanks in stock for immediate shipment.
300 Gallon F921 Double Wall Tank fully equiped with pump, gauges, emergency vents and spill container.
300 Gallon F921 Double Wall Tank fully equiped with pump, gauges, emergency vents and spill container.
Stock 2500 Gallon Double Wall Flameshield Tank.
Stock 2500 Gallon Double Wall Flameshield Tank.
10,000 Gallon UL142 Horizontal Double Wall FLAMESHIELD Tank with UL Plate saddles and skid. Tank was equiped with ground level fill piping and a pump platform.
10,000 Gallon UL142 Horizontal Double Wall FLAMESHIELD Tank with UL Plate saddles and skid. Tank was equiped with ground level fill piping and a pump platform.
1,000 Gallon UL142 Double Wall Flameshield Skid Tank fully equiped with hiflow pump, emergency vents and gauges.
1,000 Gallon UL142 Double Wall Flameshield Skid Tank fully equiped with hiflow pump, emergency vents and gauges.
300 Gallon Double Wall tanks with integrated forklift pockets so customer can relocated the tanks when needed.
300 Gallon Double Wall tanks with integrated forklift pockets so customer can relocated the tanks when needed.
20,000 Gallon UL142 Double Wall Vertical Tank with bottom platform.
20,000 Gallon UL142 Double Wall Vertical Tank with bottom platform.
Special Request from a customer showing his John Deere pride. This is a 150 gallon Double Wall Tank with equipment.
Special Request from a customer showing his John Deere pride. This is a 150 gallon Double Wall Tank with equipment.
1,200 Gallon UL142 Double Wall Tank with equipment.
1,200 Gallon UL142 Double Wall Tank with equipment.
12,000 Gallon Fireguard Tank with Equipment ready to head to Colorado.
12,000 Gallon Fireguard Tank with Equipment ready to head to Colorado.
10,000 Gallon Horizontal Double Wall Tank with Dual Dispenser set up.
10,000 Gallon Horizontal Double Wall Tank with Dual Dispenser set up.
4,000 Gallon Horizontal Double Wall Tank fully equiped and includes a customer requested Hose reel and platform.
4,000 Gallon Horizontal Double Wall Tank fully equiped and includes a customer requested Hose reel and platform.
We also deliver! This load is heading to Ohio.
We also deliver! This load is heading to Ohio.
Two double wall 516 gallon tanks for diesel and gasoline with a card reader installed so the customer can monitor who and how much fuel is being used from each tank.
Two double wall 516 gallon tanks for diesel and gasoline with a card reader installed so the customer can monitor who and how much fuel is being used from each tank.
Top View of a vertical Mixer tank.
Top View of a vertical Mixer tank.
Side view of the vertical mixer tank. This tank is actually a double wall tank with the bottom sealed off from the outer shell.
Side view of the vertical mixer tank. This tank is actually a double wall tank with the bottom sealed off from the outer shell.
150 Gallon Double Wall Waste oil tanks ready for delivery.
150 Gallon Double Wall Waste oil tanks ready for delivery.
10,000 Gallon Vertical Singlewall tank used to store process oil.
10,000 Gallon Vertical Singlewall tank used to store process oil.
12,000 Gallon Horizontal Double Wall with Fill pad
12,000 Gallon Horizontal Double Wall with Fill pad
