Home » Steel Tank Gallery » Custom Tank Gallery

Custom Tank Gallery

6,000 gallon double wall UL-142. Split compartment 50/50 on road diesel | off road diesel
6,000 gallon double wall UL-142. Split compartment 50/50 on road diesel | off road diesel
5,000 gallon single wall UL-142 process tank, insulated, internal 316SS steam coil
5,000 gallon single wall UL-142 process tank, insulated, internal 316SS steam coil
400 gallon single wall UL-142 Custom process tank. Stainless 304
400 gallon single wall UL-142 Custom process tank. Stainless 304

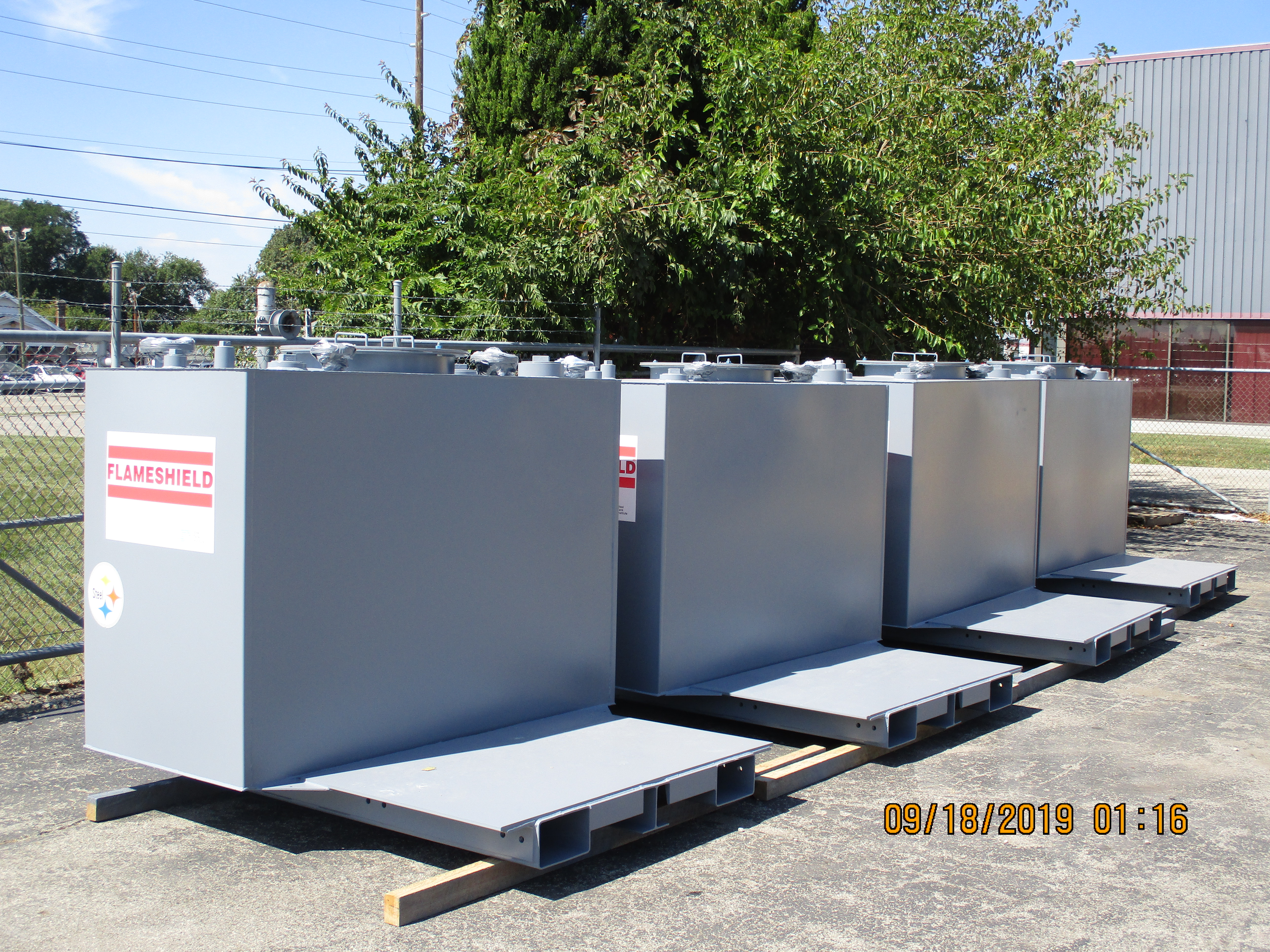

400 gallon flameshield double wall
400 Gallon double wall flameshield on structural platform with integral fork lift pockets.
1,000 Gallon 2-Compartment Double Wall Tank. This tank was designed specifically for a customer needing gasoline and diesel stored in a one tank. The two products were divided by a double bulkhead. The Gasoline side was painted red and the diesel was painted green to distinquish the two products.
1,000 Gallon 2-Compartment Double Wall Tank. This tank was designed specifically for a customer needing gasoline and diesel stored in a one tank. The two products were divided by a double bulkhead. The Gasoline side was painted red and the diesel was painted green to distinquish the two products.

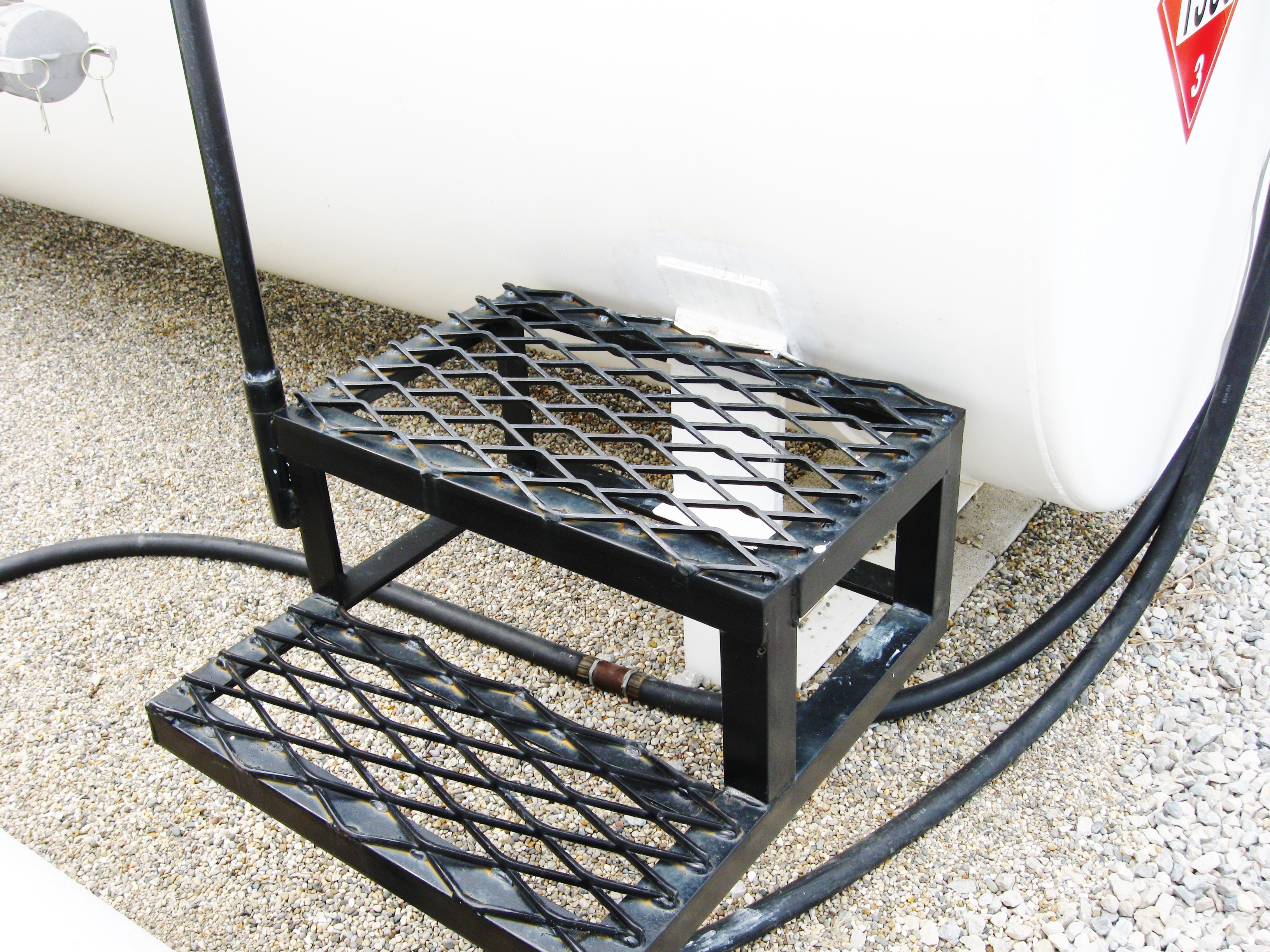

2-Step with Grab rail added to aid customer access to fittings on the top of the tank.
2-Step with Grab rail added to aid customer access to fittings on the top of the tank.
6,000 Gallon Single Wall Tank with specially designed platform
6,000 Gallon Single Wall Tank with specially designed platform
Platform when tank inserted into the dike allowed customer access to the tank from outside the dike.
Platform when tank inserted into the dike allowed customer access to the tank from outside the dike.
10,000 Gallon Vertical Dished Bottom Double Wall Tank with cage ladder, top handrail and insulated with an aluminum jacket installed at the factory.
10,000 Gallon Vertical Dished Bottom Double Wall Tank with cage ladder, top handrail and insulated with an aluminum jacket installed at the factory.
12,000 Gallon UL142 Horizontal Double Wall Tank with a locakable pump house and built in containment pan. This tank also had a fill platform with a ladder on the opposite end.
12,000 Gallon UL142 Horizontal Double Wall Tank with a locakable pump house and built in containment pan. This tank also had a fill platform with a ladder on the opposite end.

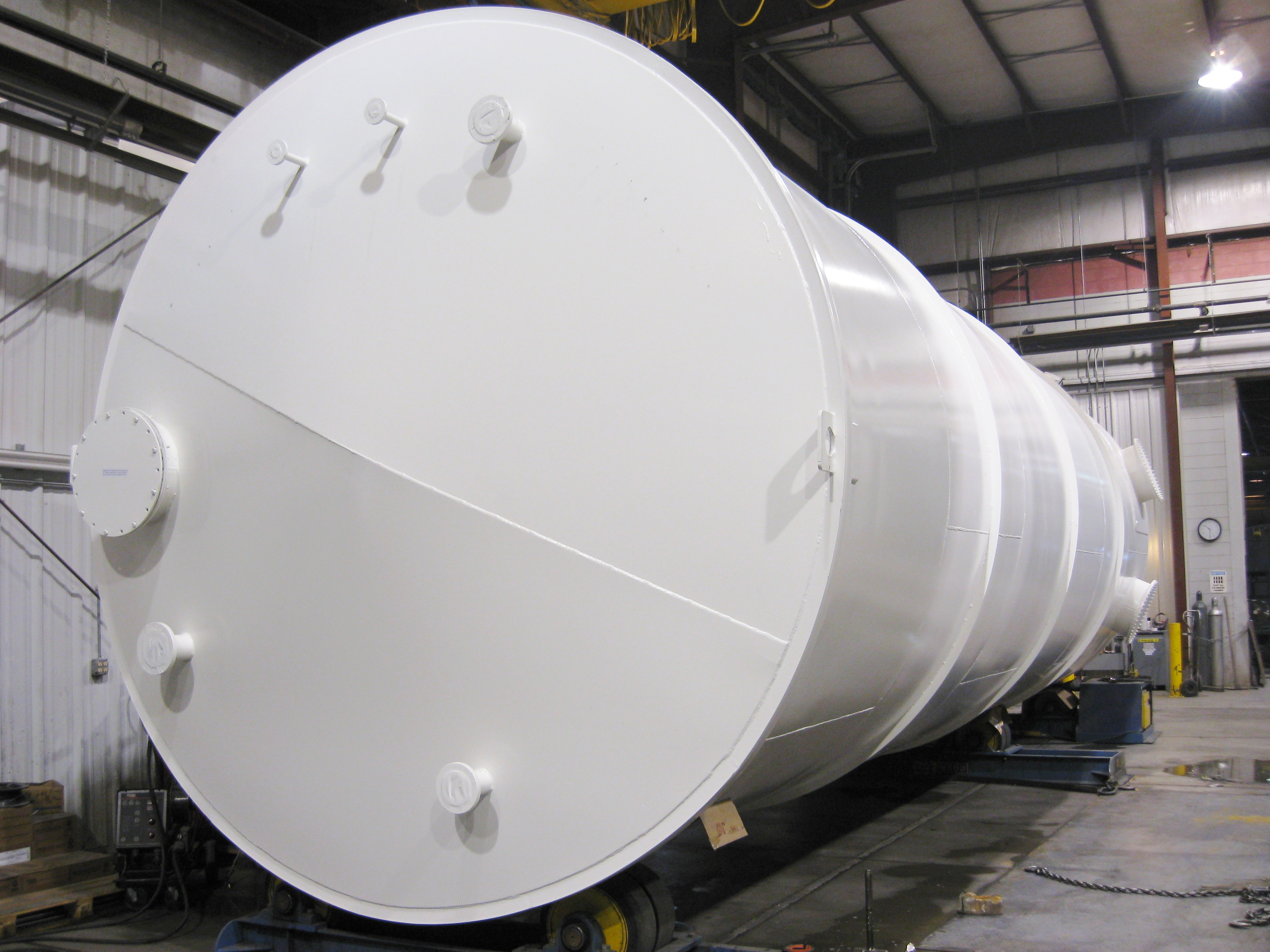

30,000 Gallon API650 tank designed for a customer in the cheese manufacturing industry. This tank is 12' dia x 36' tall.
30,000 Gallon API650 tank designed for a customer in the cheese manufacturing industry. This tank is 12' dia x 36' tall.

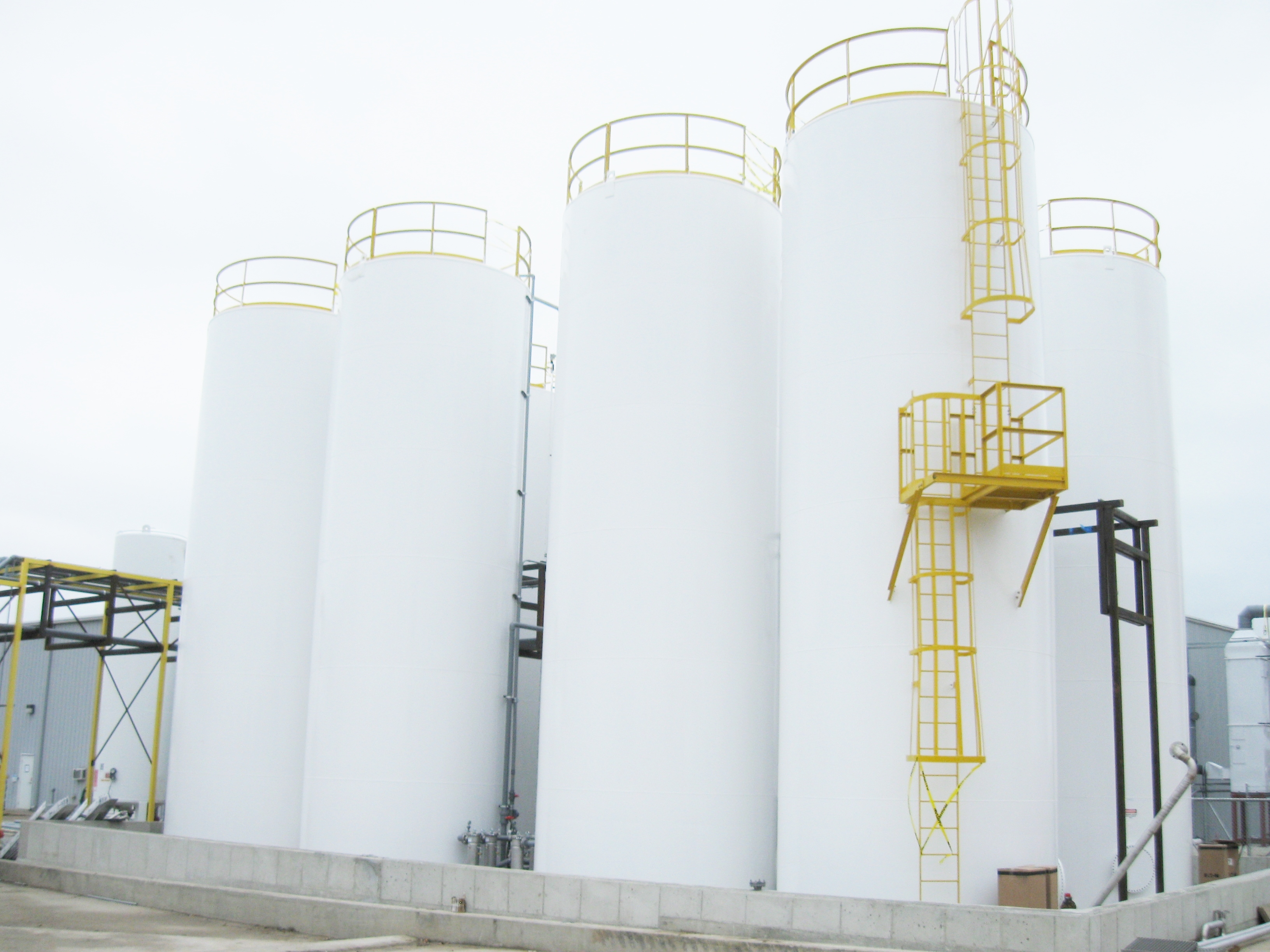

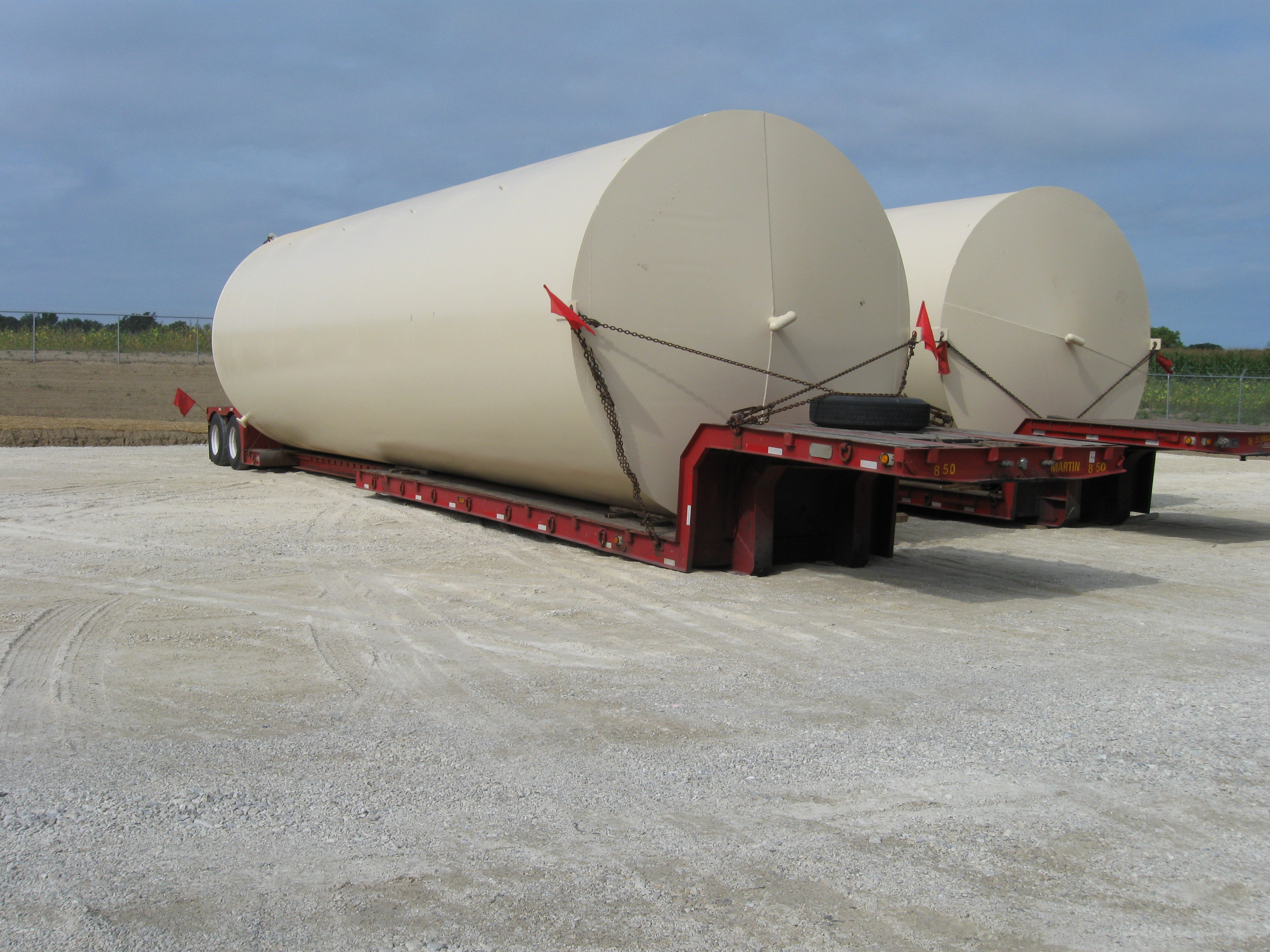

42,000 Gallon Bulk Fertilizer tanks.
42,000 Gallon Bulk Fertilizer tanks. These tanks were designed and shipped to a fertilizer manufacturing plant in Illinois. The tanks were 12'6" dia x 45' tall and shipped with a cage ladder and top handrail.
42,000 Gallon Bulk Fertilizer tanks. These tanks were designed and shipped to a fertilizer manufacturing plant in Illinois. The tanks were 12'6in. dia x 45' tall and shipped with a cage ladder and top handrail.
42,000 Gallon Bulk Fertilizer tanks. These tanks were designed and shipped to a fertilizer manufacturing plant in Illinois. The tanks were 12'6in. dia x 45' tall and shipped with a cage ladder and top handrail.
500 Gallon UL142 Single Wall tanks with a special saddle design to aid customer in fastening tanks down.
500 Gallon UL142 Single Wall tanks with a special saddle design to aid customer in fastening tanks down.
30,000 Gallon Vertical Aluminum Jacketed Insulated tanks for the Asphalt Industry.
30,000 Gallon Vertical Aluminum Jacketed Insulated tanks for the Asphalt Industry.
8,000 Gallon UL142 Double Wall Tank. Customer requested the ability to secure the dispenser and fill so we designed this lockable doghouse. This doghouse doubles as a spill containment.
8,000 Gallon UL142 Double Wall Tank. Customer requested the ability to secure the dispenser and fill so we designed this lockable doghouse. This doghouse doubles as a spill containment.
Interior view of Components on the 8,000 gallon tank with doghouse.
Interior view of Components on the 8,000 gallon tank with doghouse.
8,000 Gallon doghouse tank
8,000 Gallon doghouse tank showing the pump on the top of the tank with piping to the remote meter. This picture shows how nicely the system was set up for the customer's ease of use.
500 Gallon UL142 Double Wall Vertical Tanks with multi-directional forklift pockets.
500 Gallon UL142 Double Wall Vertical Tanks with multi-directional forklift pockets.
Large Horizontal Tank setup showing ground level fill connection, 35GPM pump with filter, 30' hose reel and automatic nozzle.
Large Horizontal Tank setup showing ground level fill connection, 35GPM pump with filter, 30' hose reel and automatic nozzle.
Large Horizontal Tank setup showing ground level fill connection, 35GPM pump with filter, 30' hose reel and automatic nozzle.
Large Horizontal Tank setup showing ground level fill connection, 35GPM pump with filter, 30' hose reel and automatic nozzle.
300 Gallon Double Wall tanks with integrated forklift pockets so customer can relocated the tanks when needed.
300 Gallon Double Wall tanks with integrated forklift pockets so customer can relocated the tanks when needed.

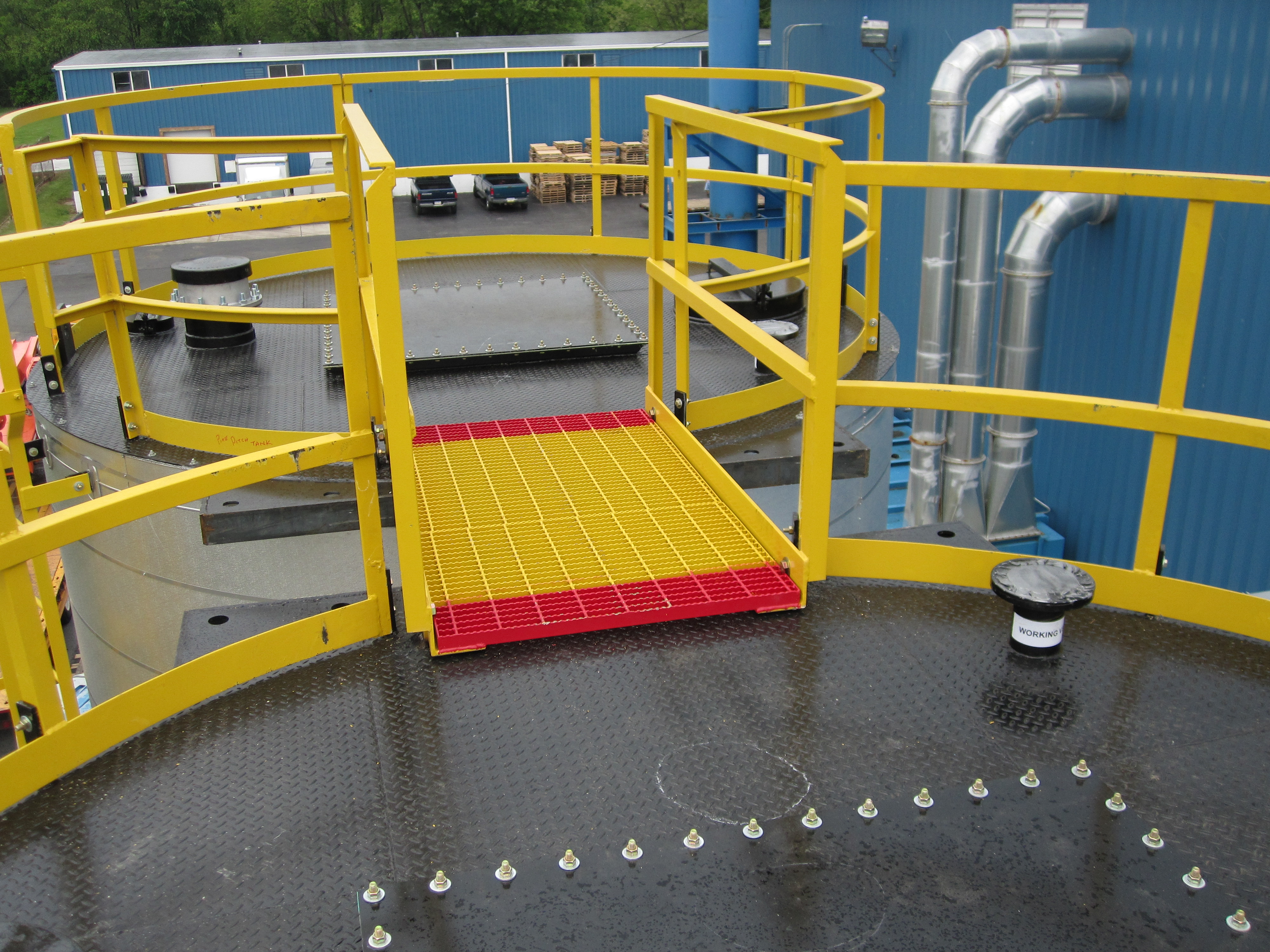

Handrail and crossover installed on two insulated Asphalt tanks.
Handrail and crossover installed on two insulated Asphalt tanks.
20,000 Gallon Vertical Asphalt tanks with insulation and Aluminum Jacket
20,000 Gallon Vertical Asphalt tanks with insulation and Aluminum Jacket
10,000 gal steel tank
We call this one the submarine. 10,000 gallon horizontal single wall tank built for a specfic customer need.

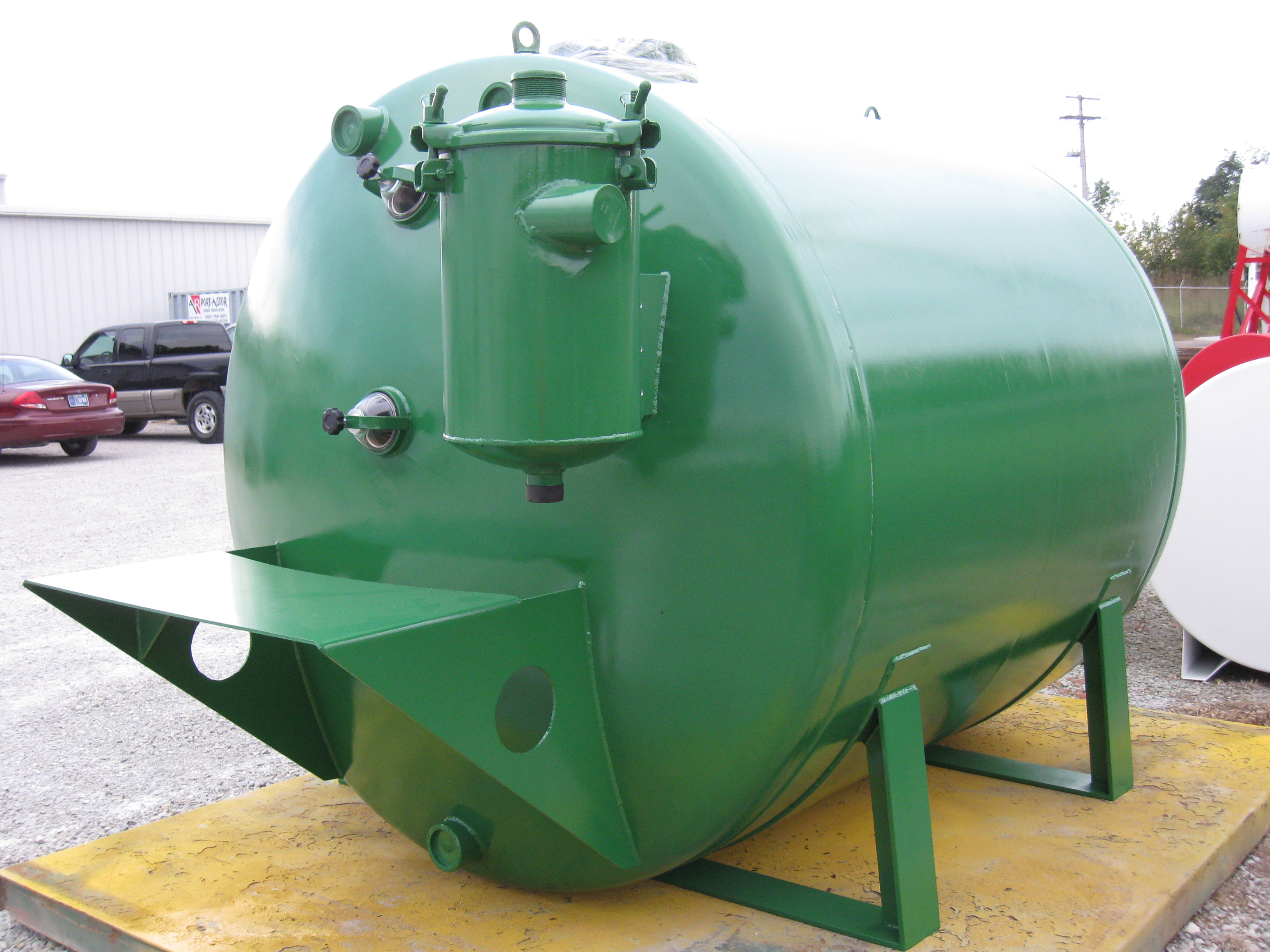

1000 Gallon Vacuum tank designed to handle a full vacuum.
1000 Gallon Vacuum tank designed to handle a full vacuum.

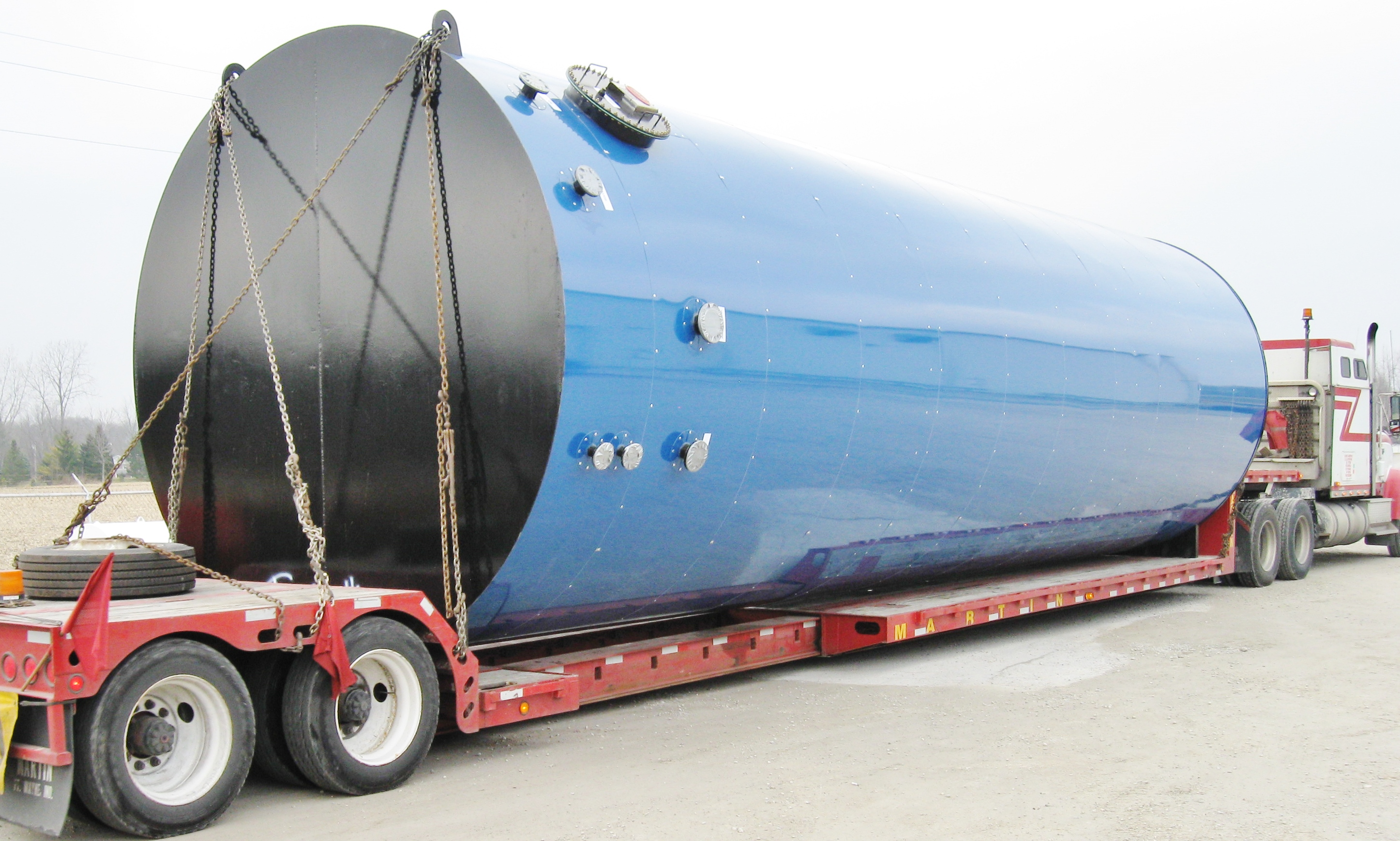

30,000 Gallon Vertical Asphalt tank. This customer requested a specific blue color of aluminum jacketing. At STAFCO we aim to please.
30,000 Gallon Vertical Asphalt tank. This customer requested a specific blue color of aluminum jacketing. At STAFCO we aim to please.

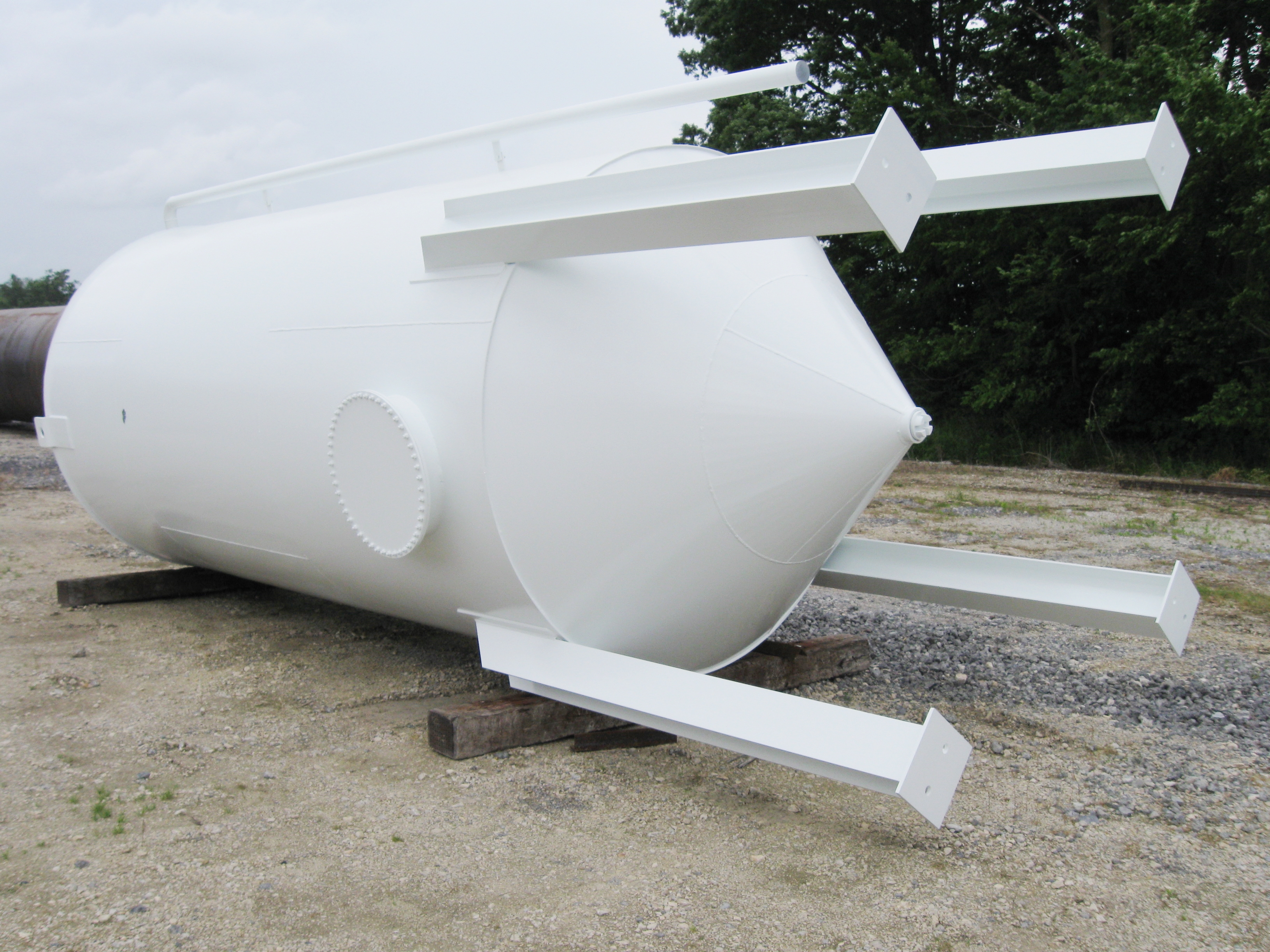

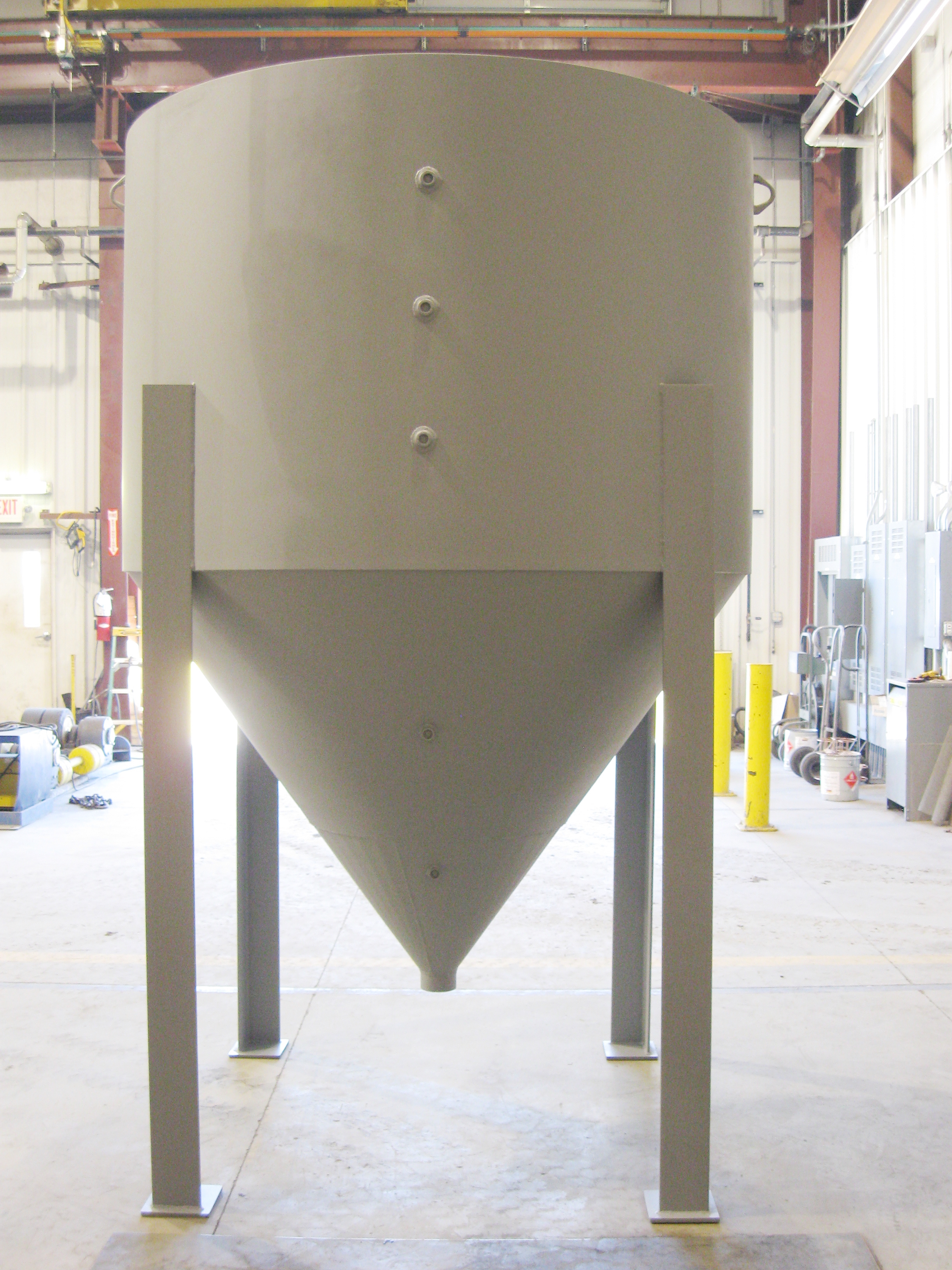

These two 900 gallon cone bottom tanks were installed to help a particular customer increase their output.
These two 900 gallon cone bottom tanks were installed to help a particular customer increase their output.
Top View of a vertical Mixer tank.
Top View of a vertical Mixer tank.

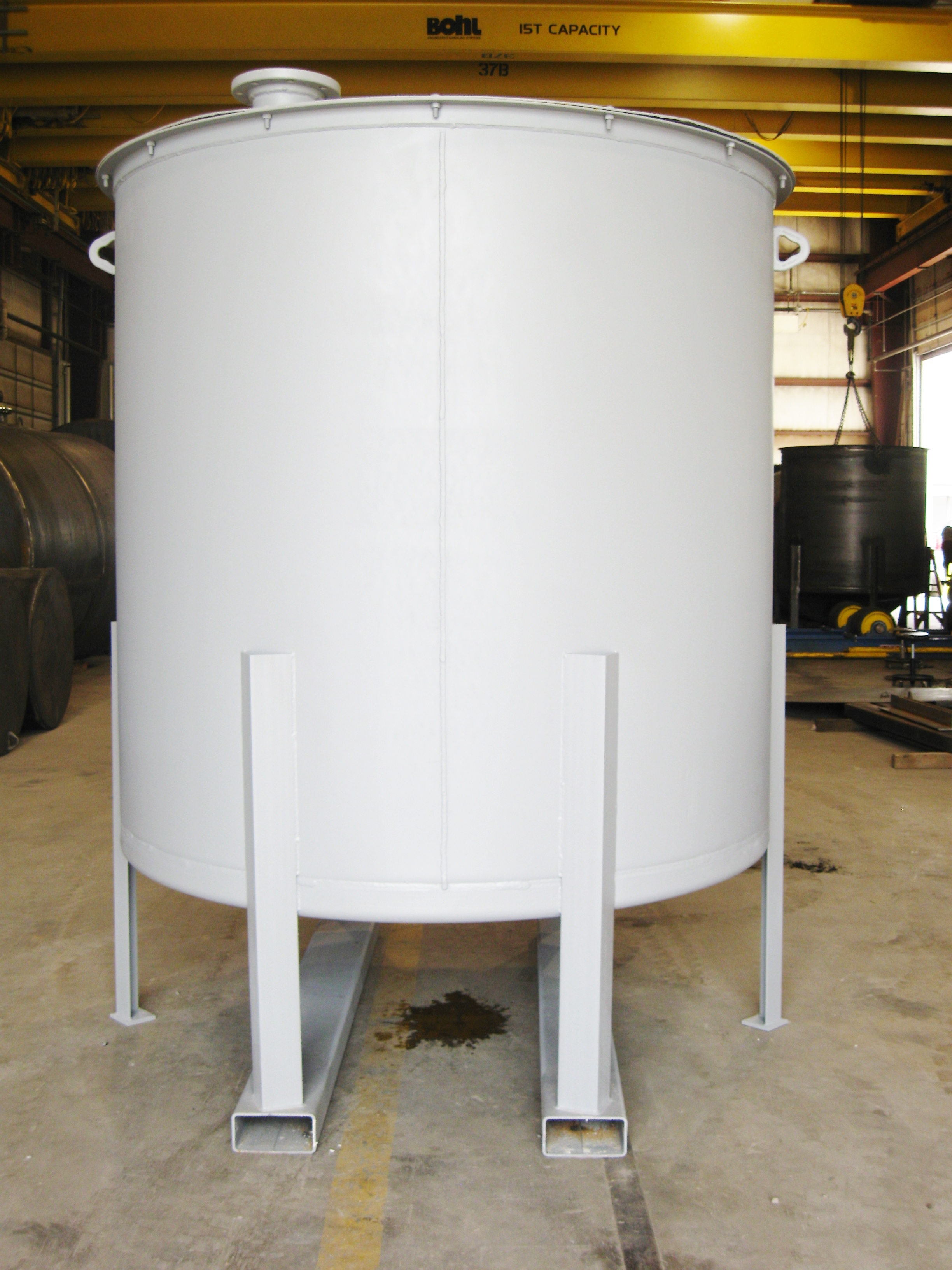

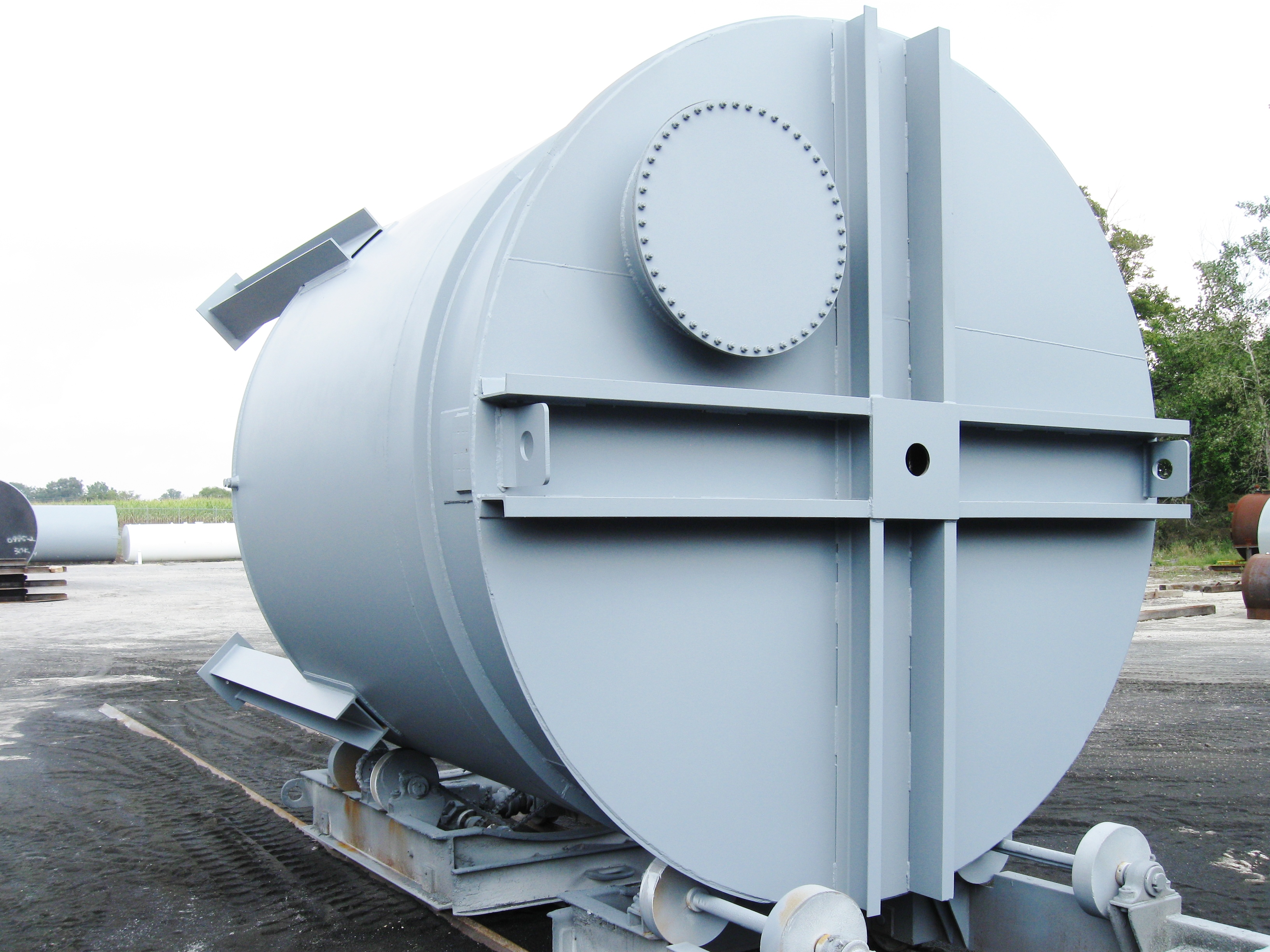

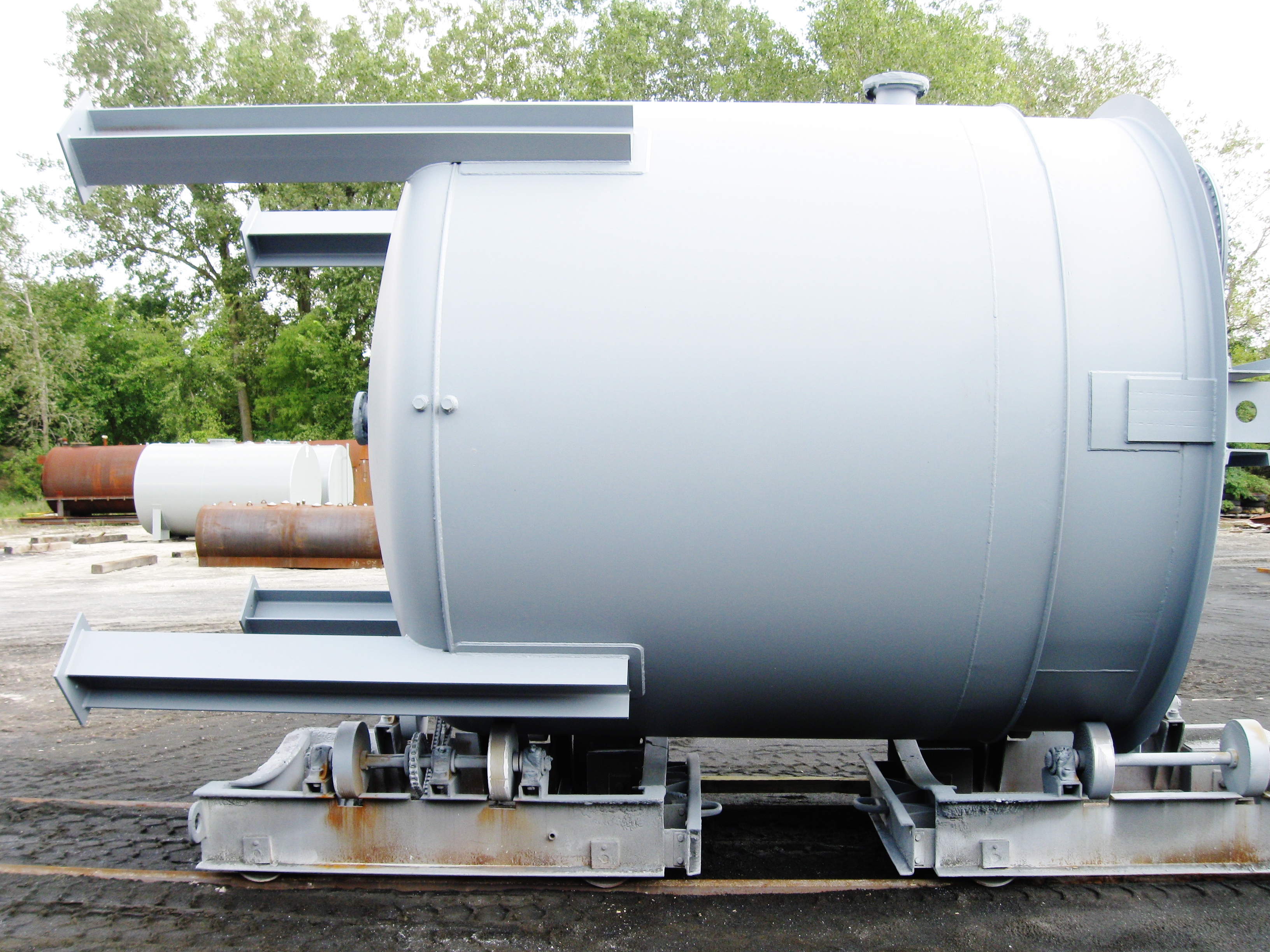

Side view of the vertical mixer tank. This tank is actually a double wall tank with the bottom sealed off from the outer shell.
Side view of the vertical mixer tank. This tank is actually a double wall tank with the bottom sealed off from the outer shell.
12,000 Gallon Horizontal Double Wall with Fill pad
12,000 Gallon Horizontal Double Wall with Fill pad

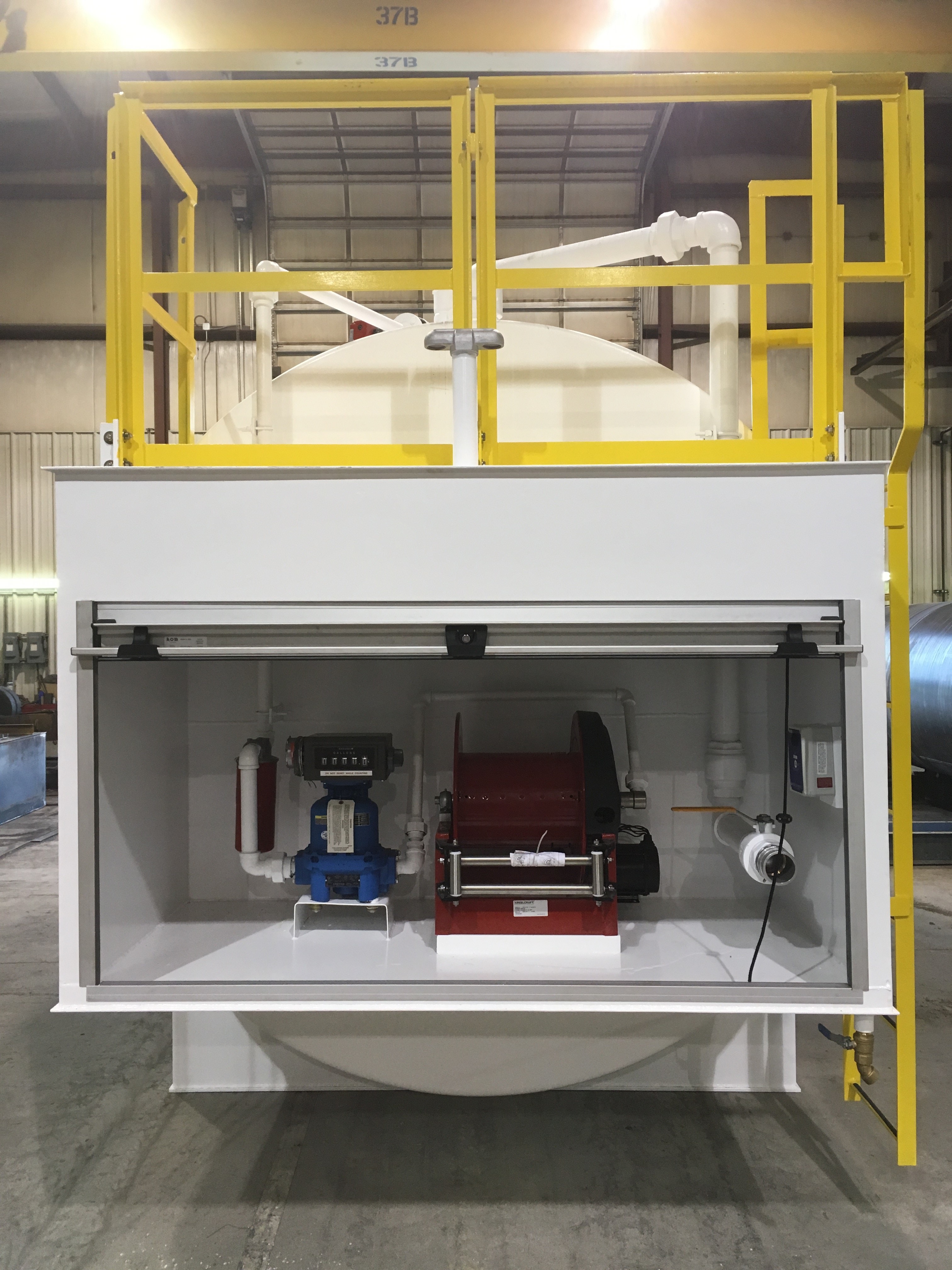

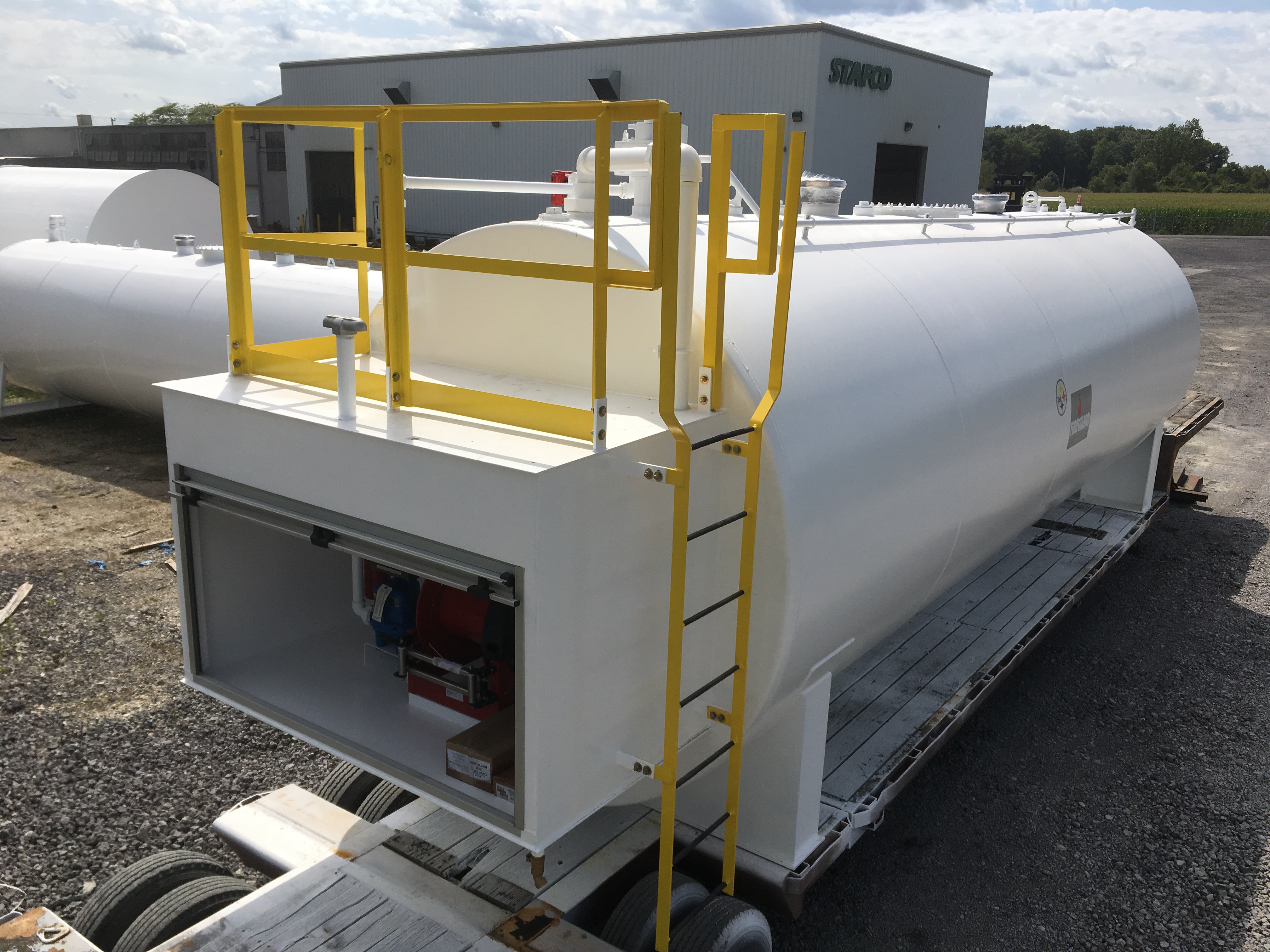

12,000 gallon Horizontal Double Wall with self contained pump platform with containment pan and locking doors
12,000 gallon Horizontal Double Wall with self contained pump platform with containment pan and locking doors
8,000 Gallon 3-Compartment Double Wall Tank
8,000 Gallon 3-Compartment Double Wall Tank with 50' hose reels and submersible pumps. Ready for use upon arrival at customers location.
